SKF Bearing assessment kitCMAK 300-SL |
| |
Checking of bearing and lubrication condition, made simple |
| |
 |
| |
| The SKF Bearing assessment kit makes the evaluation of bearing condition a simple task for maintenance, operations, reliability and vibration analysis departments. |
| |
| CMAK 300-SL Kit features |
 |
Check bearing and lubrication condition |
|
Inspect and assess overall machine condition |
|
Measures velocity, enveloped acceleration and temperature |
|
Shows changes in oil condition effected by Water content, Fuel contamination, Metallic content and Oxidation | |
| |
| CMAK 300-SL Kit includes: |
| |
|
SKF Machine Condition Advisor CMAS 100-SL
The SKF Machine Condition Advisor simultaneously measures machine vibration signals and temperature to indicate machine health and bearing condition. |
|
SKF Infrared Thermometer CMSS 3000-SL
The heavy duty SKF Infrared Thermometer is a dual laser sighted, non-contact instrument for long range application. |
|
SKF Oil condition monitor TMEH 1
The SKF Oil condition monitor indicates the degradation and contamination level of oil, and detects increased mechanical wear and loss of the oil’s lubricating properties. |
|

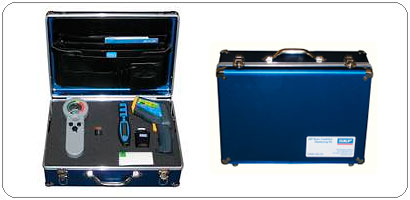

Carrying case
The instruments are packaged in a light, durable aluminum carrying case for industrial environments.
Style: Riveted construction
Weight: 2,6 kg (5.7 lb.) case only
Dimensions:
– Length: 450 mm (18 in.)
– Width: 320 mm (13 in.)
– Depth: 150 mm (6 in.) | |
| |
| Ordering details |
| CMAK 300-SL |
SKF Bearing assessment kit includes: |
|
SKF Machine Condition Advisor [CMAS 100-SL] |
|
SKF Infrared Thermometer [CMSS 3000-SL] |
|
SKF Oil condition monitor [TMEH 1] | |
| |
